軸承型號

Bearing No.

外形尺寸

Dimension(mm)

內法蘭 Inner Flange

外法蘭螺栓孔或孔尺寸

Quter Flange Bolt Hole Size & Hole Dia.(Qty.)

花鍵數

No. of Splines

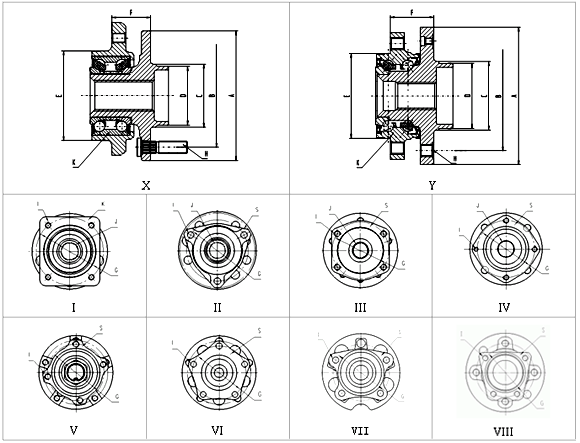

軸承單元形式

Bearing Unit Model

外法蘭盤形狀

Outer Flange Shape

螺紋孔尺寸

Bolt Hole Size (Qty.)

螺栓尺寸

Bolt Size (Qty.)

A

B

C

D

E

F

G

H

I

J

K

S

DAC2F08

127.2

100

60.8

56.8

87

37.4

112

--

M12×1.5
(5)

M10×1.5
(4)

26

X

I

DAC2F09

139

120

79

74

90

51

106

M12×1.5
(5)

--

M12×1.5
(4)

--

Y

V

DAC2F10

131

112

68

57

--

70

95

M14×1.5
(5)

--

?10.8
(5)

--

Y

VI

DAC2F11

130.5

108

68

65

83

37

103

M14×1.5
(4)

--

M10×1.5
(4)

26

Y

IV

DAC2F12

130.5

108

68

65

83

37

103

M14×1.5
(5)

M10×1.5
(4)

--

Y

IV

DAC2F12AA

165.6

147

-

-

83

37

103

M10(4)

-

M10×1.5
(4)

-

X

IV

DAC2F13

125

100

57.77

57

71

42.18

102

--

M12×1.5
(5)

?13
(3)

33

X

II

DAC2F14ABS

144.5

120.65

70.63

70.14

91.98

47.28

120.65

--

M12×1.5
(5)

M12×1.75
(3)

27

Y

II

DAC2F16

152

114.3

62

60

79.3

72

109.9

-

M12×1.5
(5)

?12.5
(4)

-

Y

Ⅶ

DAC2F17

145

120.65

70.63

70.14

91.98

47.28

120.65

-

M12×1.5
(5)

M12
(3)

27

Y

II

DAC2F17ABS

145

120.65

70.63

70.14

91.98

47.28

120.65

-

M12×1.5
(5)

M12
(3)

27

Y

II

DAC2F18

135.5

100

57

56.5

60

79

84

M12×1.5
(4)

M10×1.25
(4)

M10×1.25
(4)

-

Y

VIII

DAC2F19ABS

140

110

65.5

65

60

78

84

M12×1.5
(5)

M10×1.25

(4)

-

X

VIII

DAC2F21

119.5

100

60

56.5

85

39.4

104

M12×1.5

(4)

-

M12×1.5
(3)

33

Y

II

DAC2F22

131

108

68

65

83

37.3

103

M14×1.5
(4)

-

M10
(4)

26

X

IV

DAC2F24ABS

136.5

112

65

57

85

48

107

M14×1.5
(5)

M12×1.5
(4)

36

Y

VII

DAC2F25ABS

135

100

55

54

74

54.5

93.5

M12x1.5
(4)

M10x1.25
(4)

Y

VII

DAC2F26ABS

145.5

115

70.63

70.14

91.34

42.18

116

M12x1.5
(5)

M12x1.75
(3)

33

Y

II

DAC2F27ABS

145.5

115

70.63

70.14

91.34

42.18

116

M12x1.5
(5)

M12x1.75
(3)

33

Y

II

DAC2F28ABS

145.5

115

70.63

70.14

91.34

42.18

116

M12x1.5
(5)

12.96
(3)

33

Y

II

DAC2F29ABS

150.5

115

70.6

70.1

71.9

65

100.6

M12x1.5
(5)

12
(4)

Y

I

DAC2F32ABS

145

115

70.61

70.1

90.4

37

116

M12x1.5
(5)

M12
(3)

30

Y

II

DAC2F33ABS

138

100

57.4

57

61

65.14

89

M12x1.5
(5)

11
(4)

Y

VIII

DAC2F34

136

100

57

56.5

60

78

84

M12x1.5
(4)

M10x1.25
(4)

X

VIII

DAC2F34ABS

136

100

57

56.5

60

78

84

M12x1.5
(4)

M10x1.25
(4)

X

VIII
